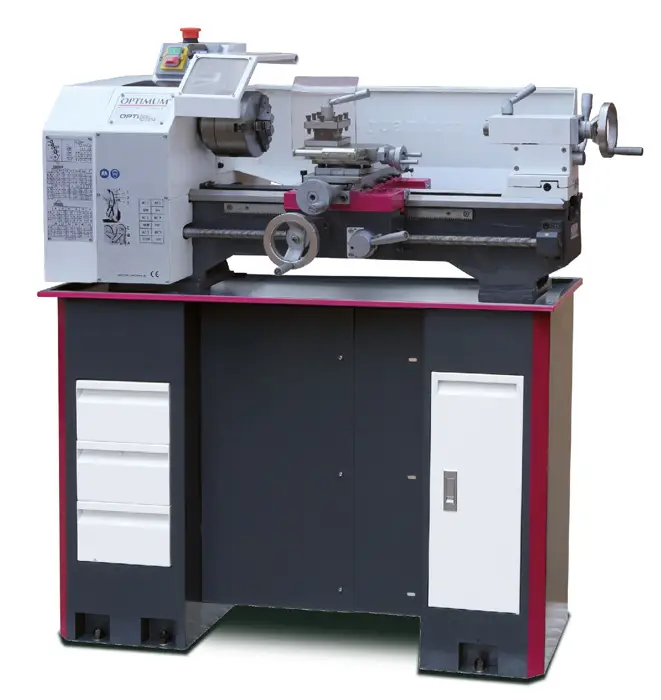

Optimum 713420320 Optiturn TU2304 Lathe 230 Volt
Lathe for the demanding do-it-yourselfer.
Features
- High and precise finishing degree
- Strong ribbed prism bed of grey cast iron, induction hardened and precision ground
- Hardened and ground prism bed guides
- Hardened spindle nose and bearing in adjustable tapered roller bearings class P5 quality
- Guaranteed concentricity accuracy of the spindle nose better than 0.009 mm concentricity accuracy of the chuck better than 0.05 mm
- With spindle for thread cutting or automatic longitudinal turning
- With longitudinal, transverse and small carriage
- Right / left running switchable at the control panel
- Separate emergency stop, separate start and stop button
- Zero-load voltage
- Chuck guard with microswitch, solid chisel guard and nice splash guard
- Equipped with thrust bearing on the transverse (for absorbing axial forces)
- Spindle in two sintered bearings (slide bearings with oil, which do not require lubrication)
- A set of exchangeable wheels provides a wide range for cutting the wire
- Gearbox – 6 speeds 125 – 2000 min-1
- Easily adjustable via potentiometer
- For flat turning, longitudinal turning, and thread cutting
- Loose head can be moved – 5 mm for turning cones, with quick clamping of loose head for even better clamping
- All guides can be adjusted without play by means of spindle strips
- Powerful, maintenance-free motor
Specifications
- Voltage V 1×230
- Motor power kW 0,75
- Center height mm 115
- Center distance mm 450
- Turning diameter above bed mm 230
- Bed width mm 135 Cup
- Number of speeds 6
- Spindle speed min-1 125-2.000
- Spindle cone MK 3 Spindle bore mm 21
- Wire steps and power supply
- Thread cutting metric M 0.4-3.5
- Thread cutting inch Gg/1 44-10
- Guide and trolley Path of chisel blade mm 75
- Traversing distance cross slide mm 120
- Height chisel holder mm 14×14
- Cone with losse kop MK 2
- Heading loose head mm 70
- Weight kg 104,00
- Dimensions (l x w x h) mm 965x585x510
Includes
- Chuck with 3 claws 100 mm
- Fixed center point MK2
- Fixed center point MK3
- Chuck and chisel guard and splash guard
- 4-fold chisel holder
- Wisselwielen set
- Control keys
- Attention! Optional undercarriage available 7134409
- Dutch language manual, inscriptions, CE marking, and CE certificate according to Machinery Directive 2006/42/CE, Low Voltage Directive 2006/95/CE and EMC Directive 2004/108/CE
